Calculation of U and J using cRPA¶
Using the constrained RPA to compute the U and J in the case of SrVO_{3}.¶
This tutorial aims at showing how to perform a calculation of U and J in Abinit using cRPA. This method is well adapted in particular to determine U and J as they can be used in DFT+DMFT. The implementation is described in [Amadon2014].
It might be useful that you already know how to do PAW calculations using ABINIT but it is not mandatory (you can follow the two tutorials on PAW in ABINIT (PAW1, PAW2)). The DFT+U tutorial in ABINIT (DFT+U) might be useful to know some basic variables about correlated orbitals.
The first GW tutorial in ABINIT (GW) is useful to learn how to compute the screening, and how to converge the relevant parameters (energy cutoffs and number of bands for the polarizability).
This tutorial should take two hours to complete (you should have access to more than 8 processors).
Note
Supposing you made your own install of ABINIT, the input files to run the examples are in the ~abinit/tests/ directory where ~abinit is the absolute path of the abinit toplevel directory. If you have NOT made your own install, ask your system administrator where to find the package, especially the executable and test files.
To execute the tutorials, create a working directory (Work*
) and
copy there the input files and the files file of the lesson. This will be explicitly mentioned in the first lessons,
that will tell you more about the files file (see also section 1.1).
The files file ending with _x (e.g. tbase1_x.files) must be edited every time you start to use a new input file.
Most of the tutorials do not rely on parallelism (except specific tutorials on parallelism). However you can run most of the tutorial examples in parallel, see the topic on parallelism.
In case you work on your own PC or workstation, to make things easier, we suggest you define some handy environment variables by executing the following lines in the terminal:
export ABI_HOME=Replace_with_the_absolute_path_to_the_abinit_top_level_dir export PATH=$ABI_HOME/src/98_main/:$PATH export ABI_TESTS=$ABI_HOME/tests/ export ABI_PSPDIR=$ABI_TESTS/Psps_for_tests/ # Pseudopotentials used in examples.
Examples in this tutorial use these shell variables: copy and paste the code snippets into the terminal (remember to set ABI_HOME first!). The ‘export PATH’ line adds the directory containing the executables to your PATH so that you can invoke the code by simply typing abinit in the terminal instead of providing the absolute path.
1 The cRPA method to compute effective interaction: summary and key parameters¶
The cRPA method aims at computing the effective interactions among correlated electrons. Generally, these highly correlated materials contain rareearth metals or transition metals, which have partially filled d or f bands and thus localized electrons. cRPA relies on the fact that screening processes can be decomposed in two steps: Firstly, the bare Coulomb interaction is screened by non correlated electrons to produce the effective interaction W_{r}.
Secondly, correlated electrons screened this interaction to produce the fully screening interaction W [Aryasetiawan2004]). However, the second screening process is taken into account when one uses a method which describes accurately the interaction among correlated electrons (such as Quantum Monte Carlo within the DFT+DMFT method). So, to avoid a double counting of screening by correlated electrons, the DFT+DMFT methods needs as an input the effective interaction W_{r}. The goal of this tutorial is to present the implementation of this method using Projected Local Orbitals Wannier orbitals in ABINIT (The implementation of cRPA in ABINIT is described in [Amadon2014] and projected local orbitals Wannier functions are presented in [Amadon2008]). The discussion about the localization of Wannier orbitals has some similarities with the beginning on the DMFT tutorial (see here and there)
Several parameters (both physical and technical) are important for the cRPA calculation:

The definition of correlated orbitals. The first part of the tutorial is similar to the DMFT tutorial and explains the electronic structure of SrVO_{3} and will be used to understand the definition of Wannier orbitals with various extensions. Wannier functions are unitarily related to a selected set of Kohn Sham (KS) wavefunctions, specified in ABINIT by band index dmftbandi, and dmftbandf. Thus, as empty bands are necessary to build Wannier functions, it is required in DMFT or cRPA calculations that the KS Hamiltonian is correctly diagonalized: use high values for nnsclo, and nline for cRPA and DMFT calculations and preceding DFT calculations. Another solution used in the present tutorial is to use a specific non selfconsistent calculation to diagonalize the hamiltonian, as in GW calculations. Concerning the localization or correlated orbitals, generally, the larger dmftbandfdmftbandi is, the more localized is the radial part of the Wannier orbital. Finally, note that Wannier orbitals are used in DMFT and cRPA implementations but this is not the most usual choice of correlated orbitals in the DFT+U implementation in particular in ABINIT (see [Amadon2008a]). The relation between the two expressions is briefly discussed in [Geneste2016].

The constrained polarization calculation. As we will discuss in section 2, there are different ways to define the constrained polarizability, by suppressing in the polarization, some electronic transitions: As discussed in section I of [Amadon2014], one can either suppress electronic transition inside a given subset of KohnSham bands. In this case, one can use ucrpa=1, and choose the first and last bands defining the subset of bands by using variable ucrpa_bands. One can also use an energy windows instead of a number of bands by using ucrpa_window. Another solution is to use a weighting scheme which lowers the contribution of a given transition, as a function of the weight of correlated orbitals on the bands involved in the transition (see Eq. (5) and (7) in [Amadon2014]). In this case, on still use the variable ucrpa_bands. The variable will in this case be used to define Projected Local Orbitals Wannier functions that will then be used to define the weighting function in the polarizability. (see Eq. (5) and (7) in [Amadon2014]).

Convergence parameters are the same as for a polarizability calculation for the screening calculation (ecuteps, ecutwfn, nband) and the same as for the exchange part of GW for the effective interaction, ie ecutsigx, ecutwfn. It is recommended, as discussed in appendix A of [Amadon2014], to use pawoptosc=1. If the calculation is carried out with several atoms, use nsym=1, the calculation is not symmetrized over atoms in this case.
2 Electronic Structure of SrVO3 in LDA¶
Before continuing, you might consider to work in a different subdirectory as
for the other tutorials. Why not Work_crpa?
In what follows, the name of files are mentioned as if you were in this subdirectory.
All the input files can be found in the $ABI_TESTS/tutoparal/Input
directory.
Copy the files tucrpa_1.in and tucrpa_1.files from ABI_TESTS/tutoparal/Input to Work_crpa with:
cd $ABI_TESTS/tutoparal/Input mkdir Work_crpa cd Work_crpa cp ../tucrpa_1.files . cp ../tucrpa_1.in .
and run the code with:
mpirun n 32 abinit < tucrpa_1.files > log_1 &
This run should take some time. It is recommended that you use at least 10 processors (and 32 should be fast). It calculates the LDA ground state of SrVO3 and compute the band structure in a second step. The variable pawfatbnd allows to create files with “fatbands” (see description of the variable in the list of variables): the width of the line along each kpoint path and for each band is proportional to the contribution of a given atomic orbital on this particular Kohn Sham Wavefunction. A low cutoff and a small number of kpoints are used in order to speed up the calculation. During this time you can take a look at the input file.
There are two datasets. The first one is a ground state calculations with nnsclo=3 and nline=3 in order to have well diagonalized eigenfunctions even for empty states. In practice, you have however to check that the residue of wavefunctions is small at the end of the calculation. In this calculation, we find 1.E06, which is large (1.E10 would be better, so nline and nnsclo should be increased, but it would take more time). When the calculation is finished, you can plot the fatbands for Vanadium and l=2 with

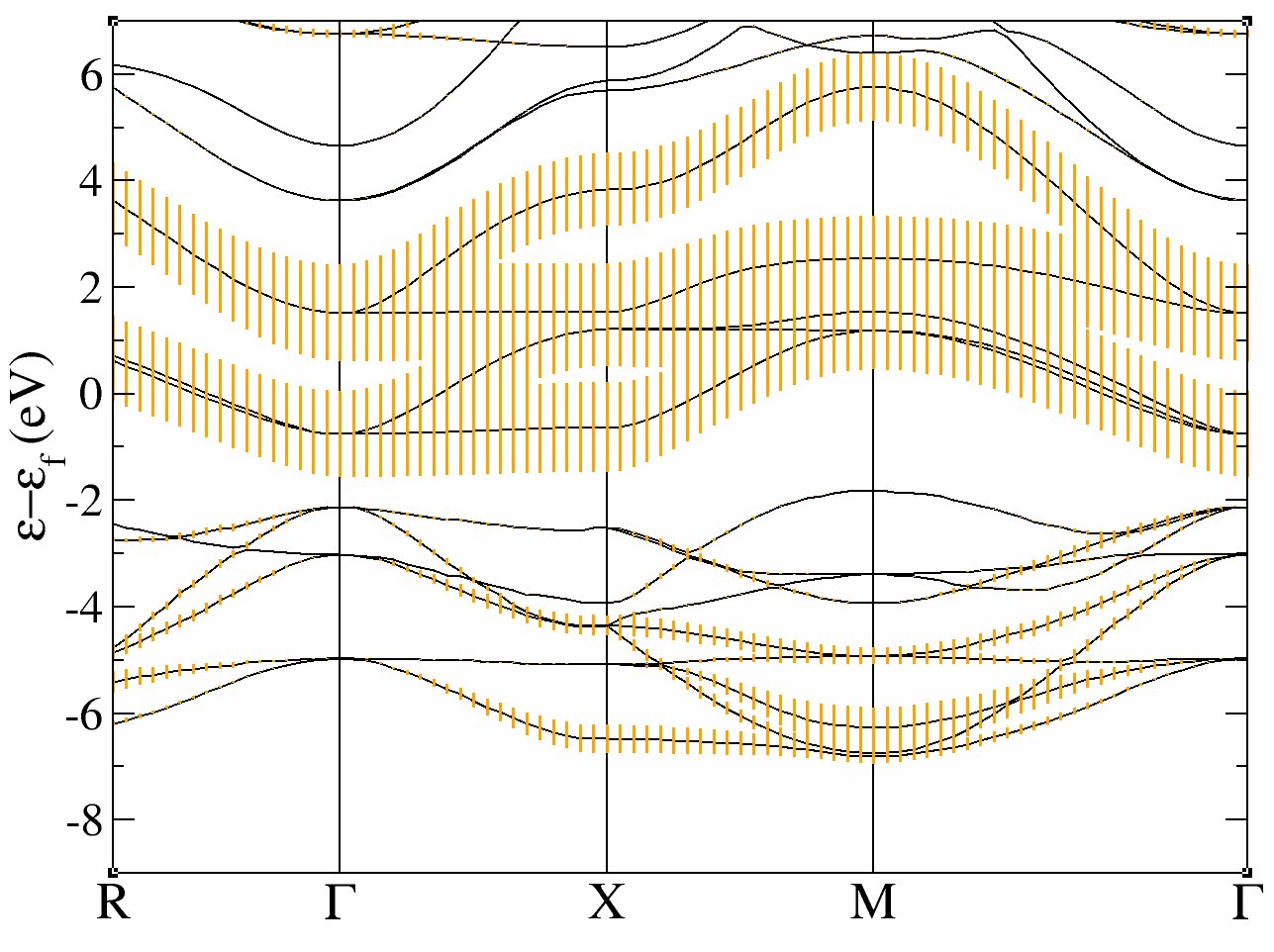

xmgrace tucrpa_O_DS2_FATBANDS_at0001_V_is1_l0002 par ../Input/tdmft_fatband.par
The band structure is given in eV.
and the fatbands for all Oxygen atoms and l=1 with
xmgrace tucrpa_O_DS2_FATBANDS_at0003_O_is1_l0001 tucrpa_O_DS2_FATBANDS_at0004_O_is1_l0001 tucrpa_O_DS2_FATBANDS_at0005_O_is1_l0001 par ../Input/tdmft_fatband.par
In these plots, you recover the band structure of SrVO3 (see for comparison the band structure of Fig.3 of [Amadon2008]), and the main character of the bands. Bands 21 to 25 are mainly d and bands 12 to 20 are mainly oxygen p. However, we clearly see an important hybridization. The Fermi level (at 0 eV) is in the middle of bands 2123.
One can easily check that bands 2123 are mainly dt_{2g} and bands 2425 are mainly e_{g}: just use pawfatbnd = 2 in tucrpa_1.in and relaunch the calculations. Then the file tucrpa_O_DS2_FATBANDS_at0001_V_is1_l2_m2, tucrpa_O_DS2_FATBANDS_at0001_V_is1_l2_m1 and tucrpa_O_DS2_FATBANDS_at0001_V_is1_l2_m1 give you respectively the xy, yz and xz fatbands (ie dt_{2g}) and tucrpa_O_DS2_FATBANDS_at0001_V_is1_l2_m+0 and tucrpa_O_DS2_FATBANDS_at0001_V_is1_l2_m+2 give the z^{2} and x^{2}y^{2} fatbands (ie e_{g}).
So in conclusion of this study, the Kohn Sham bands which are mainly t_{2g} are the bands 21, 22 and 23.
Of course, it could have been anticipated from classical crystal field theory: the vanadium is in the center of an octahedron of oxygen atoms, so d orbitals are split in t_{2g} and e_{g}. As t_{2g} orbitals are not directed toward oxygen atoms, t_{2g}like bands are lower in energy and filled with one electron, whereas e_{g}like bands are higher and empty.
In the next section, we will thus use the d like bands to built Wannier functions and compute effective interactions for these orbitals.
3 Definition of screening and orbitals in cRPA: models, input file and log file¶
3.1. The constrained polarization calculation.¶
As discussed briefly in Appendix A of [Amadon2014] as well as in section III B of [Vaugier2012] and Section II B of [Sakuma2013], one can use different schemes for the cRPA calculations. Let us discuss these different models namely the ( dd ), ( dpdp ), ( ddp (a)), and ( ddp (b)) models. In the notation (AB), A and B refers respectively to some bands of Alike and Blike character. Moreover, A refers to the definition of screening and B refers to the definition of correlated orbitals. To clarify this definition, we give below some examples:
 ( t_{2g}t_{2g}) model (or t_{2g} model): The correlated orbitals are defined with only t_{2g}like bands (bands 21, 22 and 23). The screening inside these bands is not taken into account to built the constrained polarizability. Note that if this case (and in the ( dd ) and ( dpdp ) models), using ucrpa=1 or 2 give the same results, provided one uses ucrpa_bands equal to (dmftbandi dmftbandf ).
 ( dd ) model (or d model): The correlated orbitals are defined with only d like bands (bands 21 to 25). The screening inside these bands is not taken into account.
 ( dpdp ) model (or dp model): The correlated orbitals are defined with only d like and Oplike bands (bands 12 to 23). The screening inside these bands is not taken into account.
 ( ddp (a)) model: In this scheme the Wannier orbitals are constructed as in the ( dpdp ) model. However, in this scheme, one only supresses the screening inside d like bands (ucrpa=1). It is coherent with the fact that the DMFT will only be applied to the d orbitals: so the screening for Oplike bands need to be taken into account.
 ( ddp (b)) model: It is the same model as the ( ddp (a)), nevertheless, in this case, only the weighting scheme is used (ucrpa=2 in ABINIT). Which way of computing interactions is the most relevant depends on the way the interactions will be used. Some aspects of it are discussed in Ref. [Vaugier2012]. Also, for Mott insulators, and if selfconsistency over interactions is carried out, the choice of models is discussed in [Amadon2014].
3.2. The input file for cRPA calculation: correlated orbitals, Wannier functions¶
In this section, we will present the input variables and discuss how to extract useful information in the log file in the case of the dd model. The input file for a typical cRPA calculation (tucrpa_2.in) contains four datasets (as usual GW calculations, see the GW tutorial): the first one is a well converged LDA calculation, the second is non selfconsistent calculation to compute accurately full and empty states, the third computes the constrained non interacting polarizability, and the fourth computes effective interaction parameters U and J. We discuss these four datasets in the next four subsections.
Copy the files in your Work_crpa directory with:
cp ../tucrpa_2.in . cp ../tucrpa_2.files
The input file tucrpa_2.in contains standard data to perform a LDA calculation on SrVO_{3}. We focus in the next subsections on some peculiar input variables related to the fact that we perform a cRPA calculation. Before reading the following section, launch the abinit calculation:
abinit < tucrpa_2.files > log_2
3.2.1. The first DATASET: A converged LDA calculation¶
The first dataset is a simple calculation of the density using LDA using 50 bands. We do not use symmetry in this calculation, so nsym=1. If symmetry is used (nsym=0), then the calculation of U and J will be valid, but the full interaction matrix described in section 3.2.4 will not be correct.
3.2.2. The second DATASET: A converged LDA calculation and definition of Wannier functions¶
Before presenting the input variables for this dataset, we discuss two important physical parameters relevant to this dataset.

Diagonalization of KohnSham Hamiltonian: As in the case of DFT+DMFT or GW calculation, a cRPA calculation requires that the LDA is perfectly converged and the Kohn Sham eigenstates are precisely determined, including the empty states. Indeed these empty states are necessary both to build Wannier functions and to compute the polarizability. For this reason we choose a very low value of tolwfr in the input file tucrpa_1.in.

Wannier functions: Once the calculation is converged, we compute Wannier functions, as in a DFT+DMFT calculation. To do this, we only precise that we are using the DFT+DMFT implementation (usedmft=0), but only with the Wannier keywords (dmftbandi and dmftbandf). We emphasize that with respect to the discussion on models on section 3.1, dmftbandi and dmftbandf are used to define the so called A bands. We will see in dataset 2 how B bands are defined. In our case, as we are in the dd model, we choose only the d like bands as a starting point and dmftbandi and dmftbandf are thus equal to the first and last d like bands, namely 21 and 25.
iscf2 2 # Perform a non selfconsistent calculation nbandkss2 1 # Number of bands in KSS file (1 means the # maximum possible) kssform 3 # Format of the Wavefunction file (should be 3) nbdbuf2 4 # The last four bands will not be perfectly # diagonalized tolwfr2 1.0d18 # The criterion to stop diagonalization # Compute Wannier functions usedmft2 1 # Mandatory to enable the calculation of Wannier # functions as in DMFT. dmftbandi2 21 # Precise the definition of Wannier functions dmftbandf2 25 # Precise the definition of Wannier functions
3.2.2. The third DATASET: Compute the constrained polarizability and dielectric function¶
The third DATASET drives the computation of the constrained polarizability and the dielectric function. Again, we reproduce below the input variables peculiar to this dataset.
We add some comments here on three most important topics
 Definition of constrained polarizability: As in the discussion on models on section 3.1, the constrained polarizability is defined thanks to Blike bands. The keywords related to this definition is ucrpa_bands. According to the value of ucrpa, ucrpa_bands defined the bands for which the transitions are neglected, or (if ucrpa=2), it defined Wannier functions that are used in the weighting scheme (see Eq. (5) and (7) of section II of [Amadon2014]). Alternatively and only if ucrpa=1, an energy windows can be defined (with variable ucrpa_window) to exclude the transition. In our case, as we are in the dd model, we neglect transitions inside the d like bands, so we choose ucrpa_bands= 21 25.
 Convergence of the polarizability: nband and ecuteps are the two main variables that should be converged. Note that one must study the role of these variables directly on the effective interaction parameters to determine their relevant values.
 Frequency mesh of the polarizability: Can be useful if one wants to plot the frequency dependence of the effective interactions (as in e.g. [Amadon2014]).
optdriver3 3 # Keyword to launch the calculation of screening gwcalctyp3 2 # The screening will be used later with gwcalctyp 2 # in the next dataset getwfk3 1 # Obtain WFK file from previous dataset ecuteps3 5.0 # Cutoff energy of the planewave set to represent # the dielectric matrix. # It is important to converge effective interactions # as a function of this parameter. #  Frequencies for dielectric matrix nfreqre3 1 # Number of real frequencies freqremax3 10 eV # Maximal value of frequencies freqremin3 0 eV # Minimal value of frequencies nfreqim3 0 # Number of imaginary frequencies #  Ucrpa: screening ucrpa_bands3 21 25 # Define the bands corresponding to the _d_ contribution #  Parallelism gwpara3 1
3.2.3. The fourth DATASET: Compute the effective interactions¶
The fourth DATASET drives the computation of the effective interactions. It is similar computationally to the computation of exchange in GW calculations. Again, we reproduce below the input variables peculiar to this dataset.
We add some comments on convergence properties

Convergence as the number of plane waves: Eq. (A1) and (A2) in Appendix A of [Amadon2014] show the summation over plane waves which is performed. The cutoff on plane wave which is used in this summation is ecutsigx because of the similarity of Eq. A2 with the Fock exchange (see GW notes when one computes the bare interaction. ecutsigx is thus the main convergence parameter for this dataset. Note that as discussed in Appendix A of [Amadon2014], high values of ecutsigx can be necessary because oscillator matrix elements in PAW contains the Fourier transform of (a product of) atomic orbitals.

The frequency mesh must be the same as in the DATASET 2.
optdriver4 4 # SelfEnergy calculation gwcalctyp4 2 # activate HF or ucrpa getwfk4 1 # Obtain WFK file from dataset 1 getscr4 2 # Obtain SCR file from previous dataset ecutsigx4 30.0 # Dimension of the G sum in Sigma_x. #  Frequencies for effective interactions nfreqsp4 1 freqspmax4 10 eV freqspmin4 0 eV nkptgw4 0 # number of kpoint where to calculate # the GW correction: all BZ is used mqgrid4 300 # Reduced but fine at least for SrVO3 mqgriddg4 300 # Reduced but fine at least for SrVO3 #  Parallelism gwpara4 2 # do not change if nsppol=2
3.2.4 The cRPA calculation: the log file (for the dd model)¶
We are now going to browse quickly the log file for this calculation.
 Bare interaction of atomic orbitals.
First, at the beginning of the log file, you will find the calculation of the bare interaction for the atomic wavefunction corresponding the angular momentum specified by lpawu, in the input file (here lpawu =2). It is a simple fast direct integration. Note that this information is complete only if you use XML PAW atomic data (as the one available on the JTH table available on the ABINIT website).
======================================================================= == Calculation of diagonal bare Coulomb interaction on ATOMIC orbitals (it is assumed that the wavefunction for the first reference energy in PAW atomic data is an atomic eigenvalue) Max value of the radius in atomic data file = 201.3994 Max value of the mesh in atomic data file = 910 PAW radius is = 2.2000 PAW value of the mesh for integration is = 587 Integral of atomic wavefunction until rpaw = 0.8418 For an atomic wfn truncated at rmax = 201.3994 The norm of the wfn is = 1.0000 The bare interaction (no renormalization) = 17.7996 eV The bare interaction (for a renorm. wfn ) = 17.7996 eV For an atomic wfn truncated at rmax = 2.2000 The norm of the wfn is = 0.8418 The bare interaction (no renormalization) = 16.0038 eV The bare interaction (for a renorm. wfn ) = 22.5848 eV =======================================================================
Various quantities are computed, the one which is interesting to see here, is the bare interaction computed for a wavefunction truncated at a very large radius (here 201.3994 au ), ie virtually infinite. We find that this bare interaction is 17.8 eV. We will compare below this value to the bare interaction computed on Wannier orbitals.
 Bare Coulomb direct interaction of Wannier orbitals. In the third dataset, the code writes the Coulomb interaction matrix as:
U'=U(m1,m2,m1,m2) for the bare interaction  1 2 3 4 5 1 16.041 14.898 14.885 14.898 15.715 2 14.898 16.041 15.508 14.898 15.092 3 14.885 15.508 16.567 15.508 15.114 4 14.898 14.898 15.508 16.041 15.092 5 15.715 15.092 15.114 15.092 16.567
 First we see that diagonal interactions are larger than offdiagonal terms, which is logical, because electron interaction is larger if electrons are located in the same orbital.
 We recover in these interaction matrix the degeneracy of d orbitals in the cubic symmetry (we remind, as listed in dmatpawu, that the order of orbitals in ABINIT are xy, yz, z^{2<\sup>}, xy, x^{2}y^{2}).
 We note also that the interaction for t_{2g} and e_{g} orbitals are not the same. This effect is compared in e.g. Appendix C.1 of [Vaugier2012] to the usual Slater parametrization of interaction matrices.
 Diagonal bare interactions are smaller to the bare interaction on atomic orbitals (17.8 eV, as discussed above). It shows that the Wannier functions (obtained within the dd model) are less localized than atomic orbitals. It is logical because these Wannier functions contain indeed a weight on O p orbitals.
 From this interaction matrix, one can compute the average of all elements (the famous U ), as well as the average of diagonal elements, which is sometimes used as another definition of U (see Eq. (8) and (9) of [Amadon2014]. The two quantities are written in the log file:
Hubbard bare interaction U=1/(2l+1)**2 \sum U(m1,m2,m1,m2)= 15.3789 0.0000 (Hubbard bare interaction U=1/(2l+1) \sum U(m1,m1,m1,m1)= 16.2514 0.0000)
Important
To speed up the calculation and if one needs only these average values of U and J, one can use nsym = 0 in the input file, but in this case, the interaction matrix does not anymore reproduce the correct symmetry. For several correlated atoms, the implementation is under test and it is mandatory to use nsym=1.]
 Bare exchange interaction. The exchange interaction matrix is also written as well as the average of offdiagonal elements, which is J.
Hund coupling J=U(m1,m1,m2,m2) for the bare interaction 1 2 3 4 5 1 16.041 0.482 0.555 0.478 0.249 2 0.482 16.041 0.329 0.478 0.478 3 0.555 0.329 16.567 0.400 0.555 4 0.478 0.478 0.400 16.041 0.482 5 0.249 0.478 0.555 0.482 16.567 bare interaction value of J=U1/((2l+1)(2l)) \sum_{m1,m2} (U(m1,m2,m1,m2)U(m1,m1,m2,m2))= 0.6667 0.0000
 Then, the cRPA effective interactions are given for all frequency. The first frequency is zero and the cRPA interactions are:
U'=U(m1,m2,m1,m2) for the cRPA interaction 1 2 3 4 5 1 3.434 2.432 2.338 2.432 2.966 2 2.432 3.434 2.809 2.432 2.495 3 2.338 2.809 3.641 2.809 2.430 4 2.432 2.432 2.809 3.434 2.495 5 2.966 2.495 2.430 2.495 3.641 Hubbard cRPA interaction for w = 1, U=1/(2l+1)**2 \sum U(m1,m2,m1,m2)= 2.7546 0.0000 (Hubbard cRPA interaction for w = 1, U=1/(2l+1) \sum U(m1,m1,m1,m1)= 3.5167 0.0000) Hund coupling J=U(m1,m1,m2,m2) for the cRPA interaction 1 2 3 4 5 1 3.434 0.440 0.508 0.435 0.247 2 0.440 3.434 0.315 0.436 0.442 3 0.508 0.315 3.641 0.378 0.444 4 0.435 0.436 0.378 3.434 0.446 5 0.247 0.442 0.444 0.446 3.641 cRPA interaction value of J=U1/((2l+1)(2l)) \sum_{m1,m2} (U(m1,m2,m1,m2)U(m1,m2,m2,m1))= 0.5997 0.0000
 At the end of the calculation, the value of U and J as a function of frequency are gathered.
 Average U and J as a function of frequency  omega U(omega) J(omega) 0.000 2.7546 0.0000 0.5997 0.0000
4 Convergence studies¶
We give here the results of some convergence studies, than can be made by the readers. Some are computationally expensive. It is recommanded to use at least 32 processors. Input files are provided in tucrpa_3.in and tucrpa_3.files for the first case.
4.1 Cutoff in energy for the polarisability ecuteps¶
The number of plane waves used in the calculation of the cRPA polarizability is determined by ecuteps (see Notes on RPA calculations). The convergence can be studied simply by increasing the values of ecuteps and gives:
ecuteps (Ha)  U (eV)  J (eV)

3  3.22  0.63
5  3.01  0.60
7  2.99  0.59
9  2.99  0.58
So, for nband=30, ecutsigx=30 and a 4x4x4 kpoint grid, the effective interactions are converged with a precision of 0.02 eV for ecuteps=5.
4.2 Number of bands nband¶
The RPA polarizability depends also of the number of KohnSham bands as also discussed in the Notes on RPA calculations)
nband  U (eV)  J (eV)

30  3.01  0.61
50  2.75  0.60
70  2.71  0.59
90  2.70  0.59
So, for ecuteps=5, ecutsigx=30 and a 4x4x4 kpoint grid, the effective interactions are converged with a precision of 0.05 eV for nband=50.
4.3 Cutoff in energy for the calculation of the Coulomb interaction ecutsigx¶
ecutsigx is the input variable determining the number of plane waves used in the calculation of the exchange part of the selfenergy. The same variable is used here to determine the number of plane waves used in the calculation of the effective interaction. The study of the convergence gives:
ecutsigx (Ha)  U_{bare} (eV)  J_{bare} (eV)  U (eV)  J (eV)

30  15.38  0.67  3.22  0.63
50  15.38  0.68  3.22  0.65
70  15.38  0.69  3.22  0.66
For ecuteps=3, nband=30 and a 4 4 4 kpoint grid, effective interactions are converged with a precision of 0.02 eV for ecutsigx=30 Ha.
4.4 kpoint¶
The dependence of effective interactions with the kpoint grid is also important to check.
kpoint grid  U_{bare} (eV)  J_{bare} (eV)  U (eV)  J (eV)

4 4 4  15.38  0.65  3.22  0.63
6 6 6  15.36  0.66  3.18  0.62
For ecuteps=3, nband=30 and ecutsigx=30, effective interactions are converged to 0.01 eV for a kpoint grid of 6 6 6. The converged parameters are thus ecuteps=5,ecutsigx=30,ngkpt=6 6 6, nband=50 with an expected precision of 0.1 eV. We will use instead ecuteps=5,ecutsigx=30,ngkpt=4 4 4, nband=50 to lower the computational cost. In this case, we find values of U and J of 2.75 eV and 0.41 eV and U is probably underestimated by 0.1 eV.
5 Effective interactions for different models¶
In this section, we compute, using the converged values of parameters, the value of effective interactions for the models discussed in section and 3.1. The table below gives for each model, the values of dmftbandi, dmftbandf and ucrpa_bands that must be used, and it sums up the value of bare and effective interactions.
model  d  d  t_{2g}t_{2g}  dpdp  d dp (a)  d dp (b)

ucrpa  1  1  1  1  2
dmftbandi/dmftbandf  21/25  21/25  12/25  12/25  12/25
ucrpa_bands  21 25  21 25  12 25  21 25  12 25
U_{bare} (eV)  15.4  15.3  19.4  19.4  19.4
U_{bare diag} (eV)  16.3  16.0  20.6  20.6  20.6
J_{bare} (eV)  0.66  0.54  0.96  0.96  0.96
U (eV)  2.8  2.8  10.8  3.4  1.6
U_{diag} (eV)  3.5  3.4  12.0  4.4  2.6
J (eV)  0.60  0.47  0.91  0.87  0.86
Even if our calculation is not perfectly converged with respect to kpoints, the results obtained for the dd, dpdp, and ddp (a) models are in agreement (within 0.1 or 0.2 eV) with results obtained in Table V of [Amadon2014] and references cited in this table.
To obtain the results with only the t_{2g} orbitals, one must use a specific input file, which is tucrpa_4.in, which uses specific keywords, peculiar to this case (compare it with tucrpa_2.in). In this peculiar case, the most common definition of J has to be deduced by direct calculation from the interaction matrices using the Slater Kanamori expression (see e.g. [Lechermann2006] or [Vaugier2012]) and not using the value of J computed in the code).
We now briefly comment the physics of the results.

Bare interactions. When the number of bands used is larger, the Wannier orbitals extension is smaller. Thus, the interaction obtained with Wannier functions obtained from dp bands are larger than interactions obtained with Wannier functions obtained with d bands and also larger than interaction obtained on atomic orbitals.

For the same Wannier functions ( dpdp, ddp (a), ddp (b)), one can see the role of the screening on cRPA interactions:
 When one supresses all transitions inside the d like and p like bands ( dpdp model), U is large.
 When only the transitions inside the d like bands are suppressed, U is smaller ( ddp (a) model) in comparison to the dpdp model, because the screening is more efficient.
 Lastly, when one uses the weighting scheme to compute the polarizability, U is very small. Indeed, in this case, one can show that there are some residual transitions near the Fermi level (due to the hybridization between d orbitals and O p orbitals) which are very efficient to screen the interaction (A similar effect is discussed in [Amadon2014] for UO 2 or [Sakuma2013] for transition metal oxydes).
Finally, fully screened interactions (not discussed here) could also be computed for each definition of correlated orbitals by using the default values of ucrpa_bands.
6 Frequency dependent interactions¶
In this section, we are going to compute frequency dependent effective interactions. Just change the following input variables in order to compute effective interaction between 0 and 30 eV. We use nsym = 0 in order to decrease the computational cost.
#  Frequencies for effective interactions nsym 0 nfreqsp3 60 freqspmax3 30 eV freqspmin3 0 eV nfreqsp4 60 freqspmax4 30 eV freqspmin4 0 eV
An example of input file can be found in tucrpa_5.in. Note that we have decreased some parameters to speedup the calculations. Importantly, however, we have increased the number of Kohn Sham bands, because calculation of screening at high frequency involves high energy transitions which requires high energy states (as well as semicore states). If the calculation is too time consuming, you can reduce the number of frequencies. The following figure has been plotted with 300 frequencies, but using 30 or 60 frequencies is sufficient to see the main tendencies. Extract the value of U for the 60 frequencies using:
grep "U(omega)" A 60 tucrpa_5.out > Ufreq.dat
Remove the first line, and plot the data:
We recover in the picture the main results found in the Fig. 3 of [Aryasetiawan2006]. Indeed, the frequency dependent effective interactions exhibits a plasmon excitation.
7 Conclusion¶
This tutorial showed how to compute effective interactions for SrVO3. It emphasized the importance of the definition of correlated orbitals and the definition of constrained polarizability.
